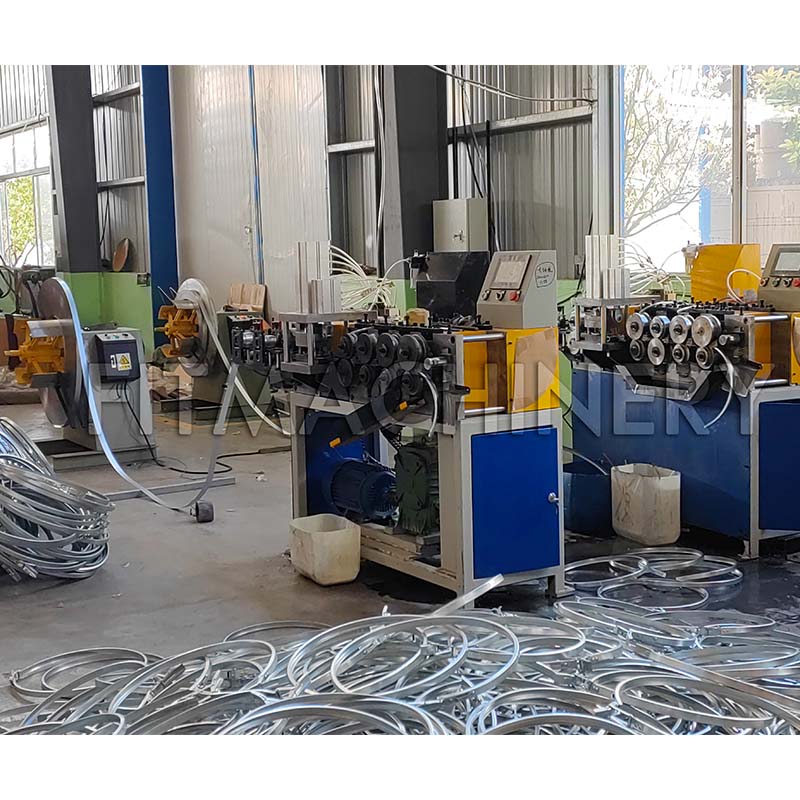

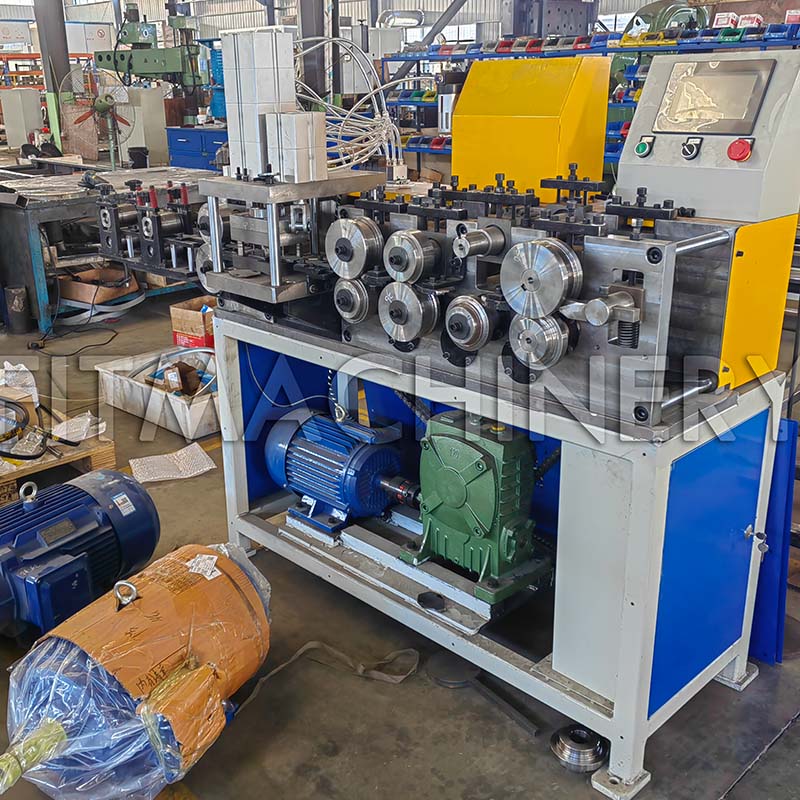

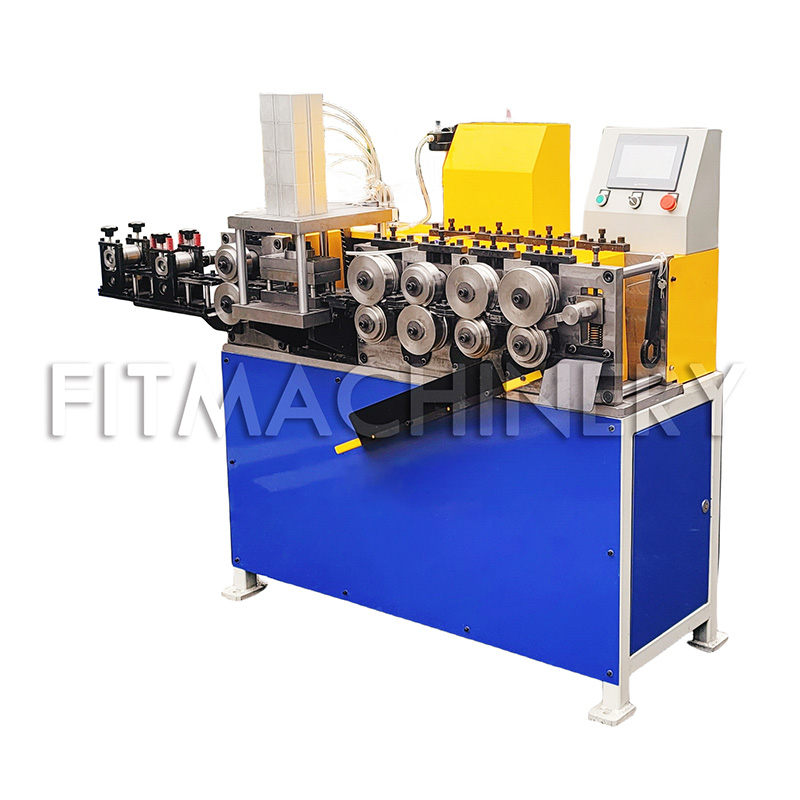

Lock Ring Making Machine

Metal drum lock ring making machine is a kind of equipment used to make fiber drum lock ring, which can ensure the sealing and safety of the drum. Through a series of automated processes, the fiber drum locking rings machine processes the raw material into standard specification lock ring, which is widely used in the production of metal barrels in chemical, petroleum, food and other industries.

Fiber Drum Making Machine’s fibre drum locking ring making machine is controlled by computer, which is safe and simple to operate, easy and quick to adjust, and automatic counting and statistical quantity. After the automatic operation mode, no need to be guarded by personnel, the product appearance is smooth, the interface is rounded, and the whole is beautiful and generous. The punching can be riveted or welded, and the punching position and hole size can be customized according to customers’ requirements.

Features:

1. Working range: diameter: ∅300 mm to ∅650 mm
2. Efficiency: approximately 360 pcs/ hour
3. Computer control, safe and simple operation, convenient and fast length adjustment, automatic counting, and production statistics.
4. After the parameters are set and the automatic operation mode is set, There is no need for personnel to guard the machine.
5. The appearance of the product is smooth, the incision is round, and the overall beauty is generous.
6. Punch hole position can be riveted or welded, punch hole position and aperture size, cut shape, can be customized according to customer requirements.
7. Optional electric feeding rack.

Technical Parameter
