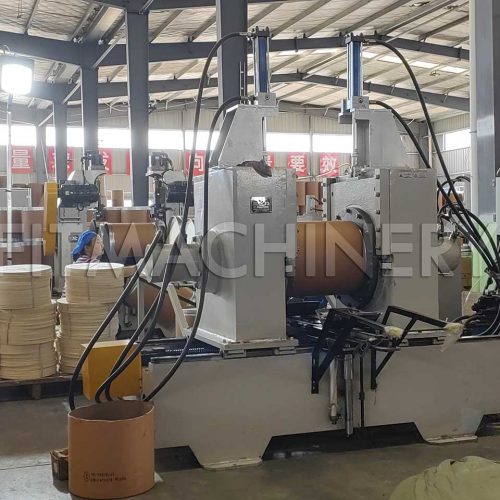

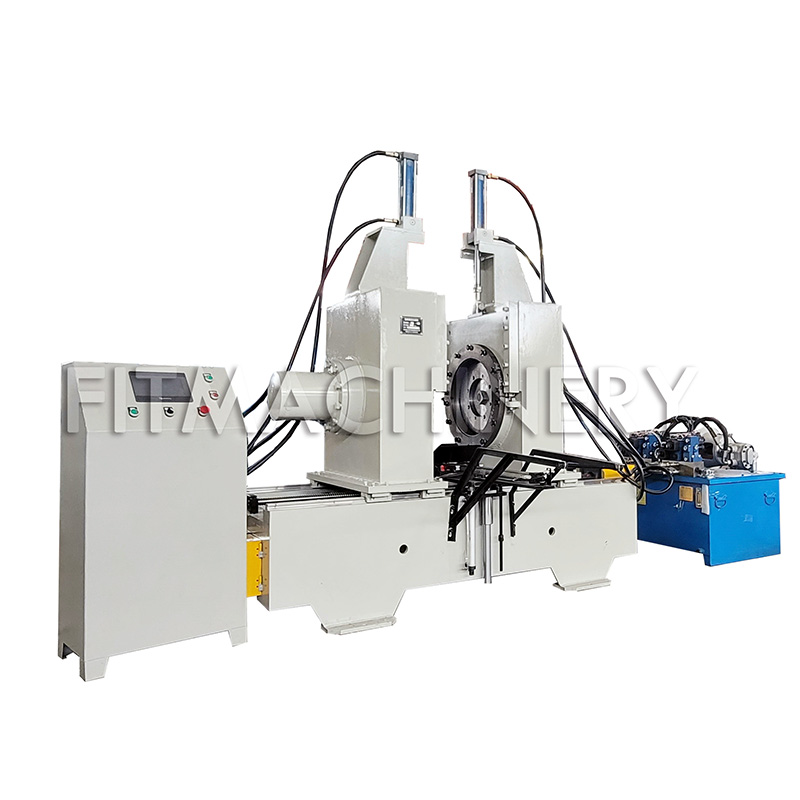

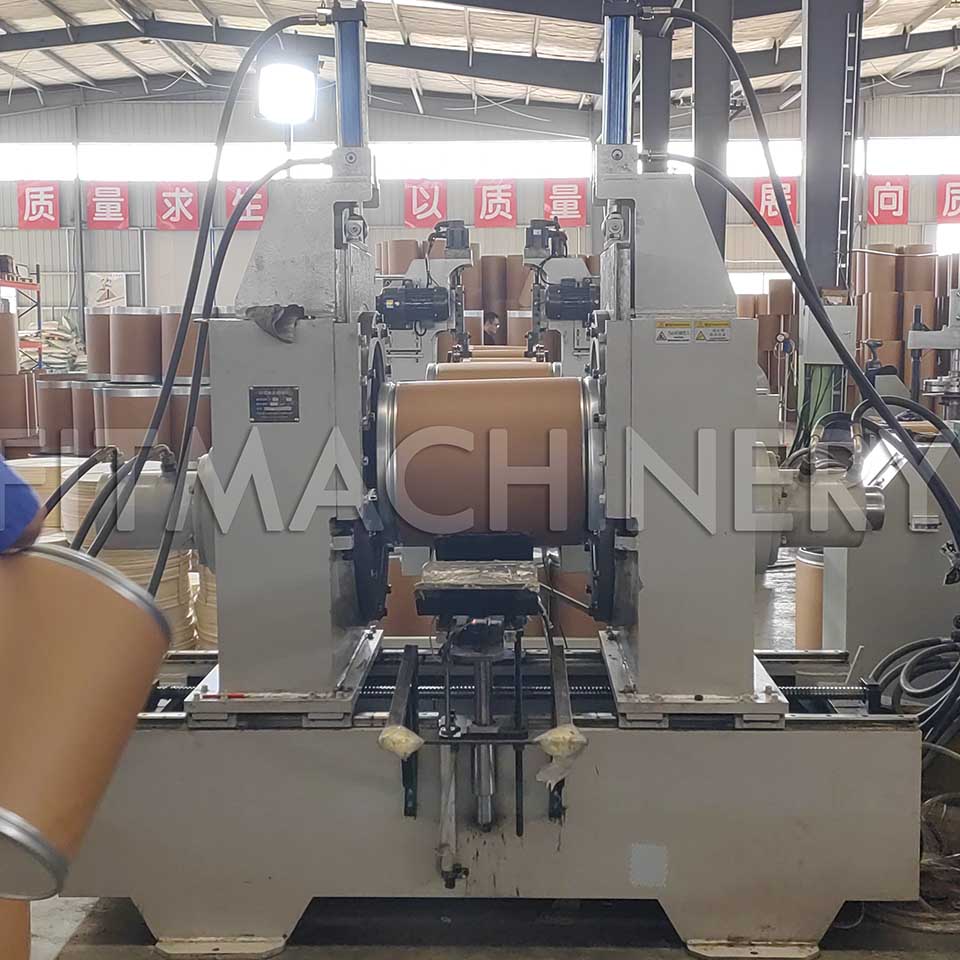

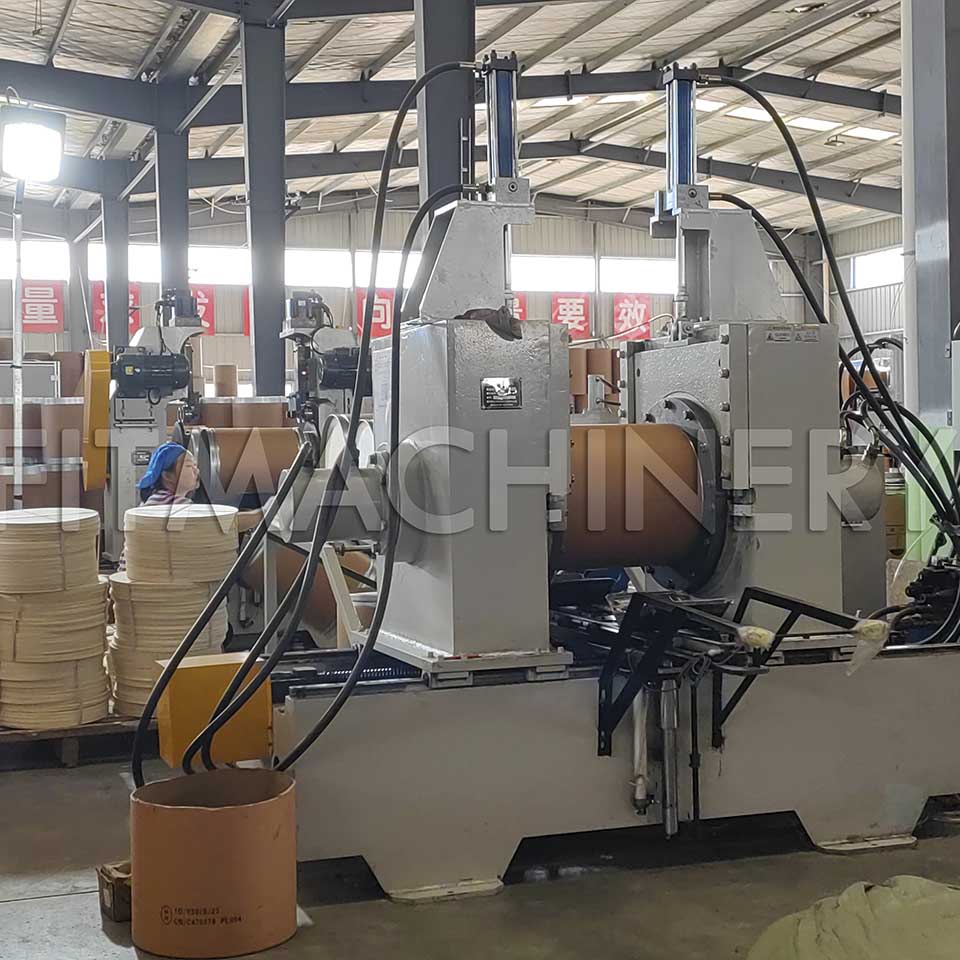

Automatic Hydraulic Bottom Sealing Machine

The fully automatic hydraulic bottom sealing machine is an automatic fiber drum equipment specially used to safely seal the bottom of a container using hydraulic pressure, such as an iron hoop bucket or a paper bucket with an iron hoop. This hydraulic back cover machine automates the sealing process at the bottom of the paper drums, ensures a tight and consistent sealing, and enhances the overall durability and leak-proof characteristics of the paper barrels container. It is an indispensable part of the production process of fiber paper drums.

Fiber Drum Making Machine’s automatic hydraulic back cover machine adopts CNC gantry milling for one-time processing and forming, and adopts a special barrel delivery device to ensure stable and reliable barrel delivery. The heads on both sides are controlled separately, and the oil is supplied by dual oil pumps, the oil pressure is stable, and it can be started separately. In addition, there is a shortage identification function. So contact Fiber Drum Making Machine right now!

Features:

1. Processing scope: diameter ∅280 mm to ∅450 mm; Height 300 mm to 850 mm
2. Efficiency: approximately 360 pcs/hour.
3. The overall structure of the machine is beautiful, solid and stable, the frame is welded with 16 mm thick steel plate and equipped with 35 linear sliding blocks, a guiding surface and a motor mounting surface, which is shaped by CNC planing and milling in one process.
4. Adopt specially designed feeding device to ensure stable and reliable feeding.
5. Both sides of the sealing machine can be controlled individually, recognition function when there is lack of material, when there is no bottom plate, the machine stops sealing the bottom of the fibre paper barrel.
6. The automatic hydraulic bottom sealing machine is operated by only one person.

Technical Parameter
